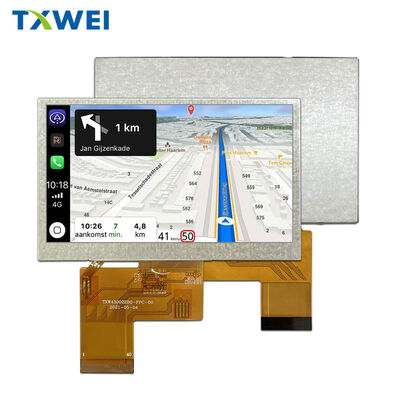

4.3 inch LCD screen 1200 high brightness 800*480 outdoor high brightness equipment display electric vehicle dashboard display screen

MOQ:	1
giá bán:	Có thể đàm phán
Thời gian giao hàng:	7-16 ngày
Phương thức thanh toán:	L/C,D/A,D/P,T/T
khả năng cung cấp:	10000 CÁI

Thông tin chi tiết

Mô tả sản phẩm

Thông tin chi tiết

Nguồn gốc

THÂM QUYẾN

Hàng hiệu

TXWEI

Chứng nhận

CE FCC ROHS

Số mô hình

TXW430047B0

Tài liệu

Số pixel:

800*3RGB ((H) X480 ((V)

Hướng xem:

Giao diện hiển thị:

RGB24BIT

Độ sáng:

1200 nit

Khu vực hoạt động:

95.04(H) * 53.856(V)

Kích thước phác thảo:

105,5*67,2*2,9mm

Nhiệt độ hoạt động:

-30+80℃

Nhiệt độ bảo quản:

-30+85

Số lượng chân:

40PIN

IC điều khiển LCM:

ST72568

Làm nổi bật:

4.3 inch LCD display screen

1200 high brightness TFT LCD

electric vehicle dashboard display

Mô tả sản phẩm

TXW430047B0

4.3" Ultra-Bright Wide-Temperature Display

1200 nits | -30°C~+80°C | IPS | 800×480 | 16:9

▎Short

◆ Sunlight-readable. Freeze-proof. Industrial-grade.

The TXW430047B0 delivers 1200 nits brightness in a 4.3-inch 16:9 format. Built for outdoor devices, EV dashboards, and extreme environments where ordinary screens fail.

▎▎Medium

◈ Brightness That Beats the Sun

1200 nits. Not 500. Not 800. Twelve hundred.

Direct sunlight. Glare. Reflections. Cut through them all.

Outdoor kiosks. Motorcycle dashboards. Field equipment. Readable. Always.

◈ Temperature Extremes, Conquered

-30°C cold start. Arctic deployments. Frozen storage monitors.

+80°C continuous operation. Desert heat. Engine compartments. Industrial ovens.

No thermal shutdown. No performance drift.

◈ Wide View, Right View

IPS technology. 178° viewing angle.

Portrait. Landscape. Tilted. Above. Below.

Colors stay true. Contrast holds. No gray inversion. No color washout.

▎▎▎Long

◇ The Display Core

800 × 480 resolution. 95.04 × 53.856 mm active area. RGB stripe pixels.

Sharp data. Smooth graphics.

16:9 native widescreen. No letterboxing. No scaling artifacts.

ST72568 driver. Mature. Stable. Proven worldwide.

RGB 24-bit interface. 40 pins. Direct connection. No bridge chips.

◦ Mechanical envelope: 105.5 × 67.2 × 2.9 mm. Compact. Slim. Design-flexible.

◇ The Backlight

16 LEDs. 28-30V. 40mA. Efficient. Long-lived.

50,000 hours to half brightness.

◦ PWM dimming. Adapt to ambient. Extend life. Save power.

◇ Built Hard

Operating: -30°C to +80°C. Sixty-degree span.

Storage: -30°C to +85°C. Survives uncontrolled conditions.

◦ Normally black mode. Dark backgrounds. Power saved. Contrast improved. Eye strain reduced.

◇ Made Right

TXW Display. In-house engineering. Direct production.

99.7% outgoing quality.

◦ Dedicated support. Responsive service.

Direct manufacturer. No broker. No trader.

◇ Goes Where

◊ Outdoor High-Brightness

Digital signage. Parking terminals. Ticket machines. Public info displays.

◦ 1200 nits beats open sky. Wide temp handles seasons. Industrial reliability cuts service calls.

◊ Electric Vehicle Dashboards

Motorcycles. Scooters. Light EVs.

◦ Compact 4.3" fits handlebar clusters. Sunlight readable for day riding. Wide angle for rider position. Cold-start reliable for winter mornings.

◊ Industrial & Medical Control

Factory HMI. Portable test gear. Medical devices in uncontrolled environments.

◦ -30°C startup for cold chain. +80°C operation for sterilization zones.

◊ Freezing & Refrigeration

Cold storage. Blast freezers. Refrigerated transport.

◦ Works where operators wear insulated gloves. Breath condenses. Display specified for what it monitors.

◊ Access Control & Security

Outdoor entry panels. Gate operators. Perimeter stations.

◦ 24/7 visibility. Vandal-resistant mountable. All-weather reliable.
