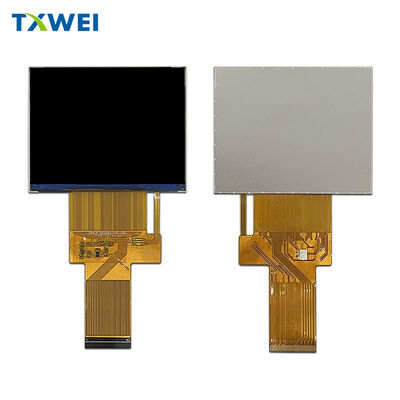

3.2 inch TFT Display with Horizontal RGB/MIPI Interface 1024*768 Industrial Screen for Medical Endoscope LCD

các sản phẩm

Bảng điều khiển cảm ứng điện dung

Mô-đun LCD 10 inch

Liên hệ với chúng tôi

Liên hệ ngay bây giờ

3.2 inch TFT Display with Horizontal RGB/MIPI Interface 1024*768 Industrial Screen for Medical Endoscope LCD

MOQ:	1
giá bán:	Có thể đàm phán
Thời gian giao hàng:	7-16 ngày
Phương thức thanh toán:	L/C,D/A,D/P,T/T
khả năng cung cấp:	10000 CÁI

Thông tin chi tiết

Mô tả sản phẩm

Thông tin chi tiết

Nguồn gốc

THÂM QUYẾN

Hàng hiệu

TXWEI

Chứng nhận

CE FCC ROHS

Số mô hình

TXW317001B0

Tài liệu

Số pixel:

1024*768

Hướng xem:

Giao diện hiển thị:

RGB24BIT

Độ sáng:

600 nit

Khu vực hoạt động:

64,51*48,38(mm)

Kích thước phác thảo:

69,41*55,49*2,25(mm)

Nhiệt độ hoạt động:

-20+70

Nhiệt độ bảo quản:

-30+80℃

Số lượng chân:

40PIN

Làm nổi bật:

3.2 inch TFT LCD display

industrial TFT screen with RGB/MIPI interface

medical endoscope LCD display

Mô tả sản phẩm

TXW317001B0

3.2-Inch Industrial-Grade IPS Display

Precision Visuals. Built for Demanding Environments.

Overview

The TXW317001B0 is a high-reliability 3.2-inch display engineered for industrial inspection systems and precision medical equipment. Combining IPS full-view technology with industrial-grade wide-temperature operation, it delivers exceptional image quality in compact spaces—empowering endoscopes, diagnostic instruments, and portable inspection devices with visuals that professionals can trust.

Why TXW317001B0?

Crisp, Detail-Rich Imaging

1024 × 768 resolution across a 3.2-inch panel delivers approximately 400 PPI pixel density. Every crack, texture, and surface anomaly becomes visible. Whether identifying microscopic fractures in industrial pipelines or examining tissue structures in medical procedures, this display reveals what others might miss.

True Color from Every Angle

IPS technology enables 178° ultra-wide viewing angles. Colors and contrast remain consistent whether viewed head-on or from the side—eliminating the color shift and washout issues common in standard TN panels. In collaborative environments, every team member sees the same accurate image.

Readable in Any Light

600 nits peak brightness outperforms standard displays by 50% or more. Outdoor fieldwork, high-ambient-light industrial floors, or surgical suites with powerful overhead lighting—screen content stays clearly visible when it matters most.

Engineered for Extremes

Certified for operation from -20°C to +70°C, with storage tolerance extending to -30°C to +80°C. From freezing outdoor installations to heat-intensive factory environments, this display maintains stable performance where consumer-grade screens would fail.

Space-Efficient Design

Active area measures 64.51 × 48.38 mm within an overall footprint of just 69.41 × 55.49 × 2.25 mm. At 2.25 mm thin, it frees valuable internal space for batteries, processors, or optical assemblies—helping your end product achieve sleeker, more ergonomic designs.

Technical Specifications

Display Characteristics

Resolution: 1024 × 768 (XGA)
Display Technology: IPS full-viewing-angle panel
Brightness: 600 cd/m²
Active Area: 64.51 mm × 48.38 mm
Outline Dimensions: 69.41 mm × 55.49 mm × 2.25 mm

Interface & Drive

Signal Interface: RGB 24-bit parallel
Pin Configuration: 40-pin standard connector
Driver IC: JD9168S with integrated Gamma correction and power management

Environmental Resilience

Operating Temperature: -20°C to +70°C
Storage Temperature: -30°C to +80°C
Humidity Tolerance: 10%–90% RH, non-condensing

Applications

Industrial Borescopes & Videoscopes

Pipeline inspection, precision machinery internal examination, automotive engine diagnostics. High resolution reveals millimeter-scale defects. IPS technology preserves defect characteristics across viewing angles. Wide-temperature design withstands field deployment conditions.

Medical Endoscopy Systems

Laparoscopes, arthroscopes, ENT examination equipment. 600-nits brightness penetrates dark internal cavities. Accurate color reproduction presents true tissue states for confident clinical decision-making.

Laryngoscopes & Airway Management

Anesthesia and emergency airway procedures. Fast response eliminates motion blur. Real-time HD display integrates with camera systems to improve intubation success rates and procedural safety.

Industrial Instruments & Portable Devices

Handheld gauges, portable test equipment, industrial controller HMI. Compact dimensions align with miniaturization trends. High reliability reduces on-site failure risks.

Delivery & Support
Lead Time: 3–5 days for samples, 4–6 weeks for volume orders
Technical Resources: Initialization code samples, mechanical integration guides, reliability test reports
Customization Services: Brightness tuning, pinout optimization, cover lens bonding, and more

Get Started
Request samples. Download full specifications. Discuss customization.
Connect with our technical sales team for personalized product selection guidance and quotation.
