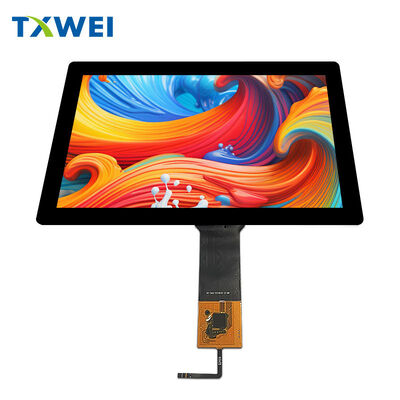

TXW121003B1-LD | 12.1" Industrial IPS Touch Display Module
1280×800 High Brightness | 750 nits | 4-Lane LVDS | G+G 10-Point
Capacitive Touch | Wide Temperature -20 ℃~+70℃
Product Overview
TXW121003B1-LD is a 12.1-inch touch display module designed specifically for harsh industrial environments. IPS full view panel paired with G+G structure capacitive touch, 750 nits high brightness ensures clear outdoor visibility, stable operation over a wide temperature range, making it an ideal choice for agricultural machinery, commercial vehicles, industrial automation, and medical equipment.
Excellent Display
12.1-inch IPS hard screen, 1280 × 800 resolution, 204 μ m fine pixel pitch. 750 nits typical brightness, 80/80/80/80 full field of view, 16.7M color depth, vivid and delicate image. 48 LED backlights have a lifespan of up to 30000 hours and are long-lasting and stable.
Precise touch control
G+G high-end structure, panda glass cover plate, 7H hardness scratch resistant, 0.5J drop ball impact passing through. The ILI2511 main control supports 10 point touch, optimized for wet hand and glove modes, ensuring worry free operation in industrial scenarios. ≥ 82% transmittance, 1000 hour UV aging certification.
sturdy and reliable
-Operating temperature from 20 ℃ to+70 ℃, storage from -30 ℃ to+80 ℃, stable operation in extreme cold and heat. Air ± 15KV, contact ± 8KV ESD protection, anti electromagnetic interference. Complete reliability testing through high temperature, low temperature, high humidity, and temperature cycling.
Easy to integrate
4-channel LVDS high-speed transmission, 40pin standard FPC. I ² C touch interface, 3.3V power supply, compatible with mainstream platforms such as MTK8768, NXP i.MX, Rockchip, etc. The module size is 293.66 × 198.66 × 8.15mm, with a compact structure.
Typical Applications
Agricultural machinery - central control instruments for tractors and harvesters, GPS navigation, field operation monitoring. High brightness wide temperature, glove touch, anti vibration.
Commercial vehicle navigation terminals for trucks and buses, fleet management, and reversing cameras. LVDS long-distance stable transmission, reliable cold start at -20 ℃.
Industrial automation - PLC control panel, HMI interface, equipment monitoring. 7 × 24-hour operation, with a backlight lifespan of 30000 hours.
Medical equipment - portable ultrasound, monitor, testing instrument. Accurate touch, easy to clean, and stable quality.
Quality Assurance
RoHS lead-free environmental protection process, ISO9001 quality management system. Three checkpoints of incoming inspection, process control, and full inspection of finished products ensure the reliable delivery of each module.
