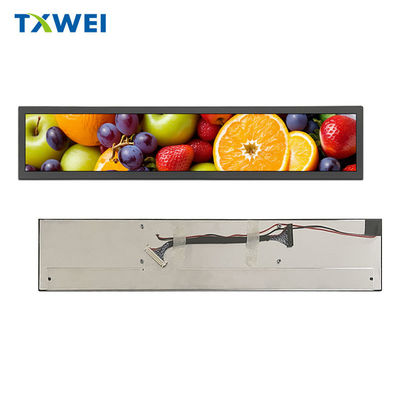

TXW19S001A0: 19 inch ultra bright widescreen, setting a new professional benchmark for advertising and medical displays
In the era of information explosion, a good screen is the silent salesman of a brand. TXW19S001A0- a 19 inch industrial
grade high brightness widescreen with a dazzling brightness of 1500 nits, cinema grade IPS wide viewing angle,
and ultra-thin 21mm body, upgrading "clear viewing" to "stunning viewing", delivering a "hardcore" answer to the
two harsh scenarios of advertising and healthcare.
1,Attracted at a glance: 1500 nits daylight level brightness
The brightness of a regular LCD screen is only 250-400 nits, and the image appears gray and the information is distorted
under strong outdoor light. TXW19S001A0 has been directly increased to 1500 nits, even under direct sunlight at noon,
the advertising image remains transparent and bright, and the details of medical images in dark areas are not afraid
of environmental light interference, truly achieving "readability under sunlight and precision under lighting".
2,Ultra wide horizontal screen ratio: information carrying "increase quantity without increasing price"
1920 × 320 resolution brings a 6:1 ultra wide ratio, with one screen equaling three traditional bar screens:
Advertising booth - can simultaneously broadcast host KV, scrolling subtitles, and promotional videos, increasing
space utilization by 200%;
Medical scene - integrating three major systems of calling, education, and guidance on one screen, reducing department
wall cutting and making the environment cleaner.
3,IPS 178 ° wide viewing angle: no color cast even when viewed from the side
Subway corners, elevator side walls, ward headboards... the line of sight often forms a large angle with the screen.
IPS technology ensures that there is no color deviation or grayscale reversal at 178 degrees up, down, left, and right.
Whether passengers or patients are standing or sitting, the image remains consistent, and the advertising reach rate is
synchronized with the doctor-patient experience.
4,Industrial grade strict standard: 0-50 ℃ 7 × 24h continuous "online"
Adopting high and low temperature resistant liquid crystal and all metal heat dissipation structure, stable operation
can be achieved in 0 ℃ cold storage and 50 ℃ window display; LVDS 8-bit 30 Pin industrial interface, anti-interference,
no frame drop, supports plug and play on Android/Windows/X86 motherboards, reduces project implementation cycle by 50%.
5,Ultra thin 21 mm: turning "limited space" into "infinite possibilities"
The overall thickness of the machine is only 21 mm, which is 40% compressed compared to conventional high brightness
screens. It can be embedded and installed on corridor walls, elevator door lintels, and medical carts, seamlessly integrating
with decoration; 500 × 119.6 mm aspect ratio, one screen is like a digital "decorative strip", beautiful and not abrupt.
6,Typical landing scenario
• Subway channel advertising wall -6 TXW19S001A0 horizontally spliced, 12 meter long "visual ribbon", daily exposure of
120000 people, advertising CPM cost reduced by 35%.
• Hospital Outpatient Hall - Three screens display call numbers, floor navigation, and health education, replacing
traditional light boxes and stickers, saving over 100000 yuan in material replacement costs annually.
• Chain pharmacy display window -1500 nits high brightness through the street facing glass, clear and visible promotional
information during the day, automatic dimming at night without glare, increasing single store customer flow by 18%.
7,Product Specifications Overview
Display size: 19 inches (476.65 × 89.34 mm)
Resolution: 1920 × 320
Brightness: 1500 nits
Perspective: IPS 178 °/178 °
Interface: LVDS 8-bit 30 Pin
Working temperature range: 0~+50 ℃
Storage temperature range: -10 to+60 ℃
Whole machine thickness: 21 mm
Application certification: CE/FCC/ROHS
19 inch high brightness bar screen, TXW19S001A0, 1500nits high brightness LCD screen,
IPS wide temperature industrial screen, medical display screen, advertising high brightness screen
19 inch 1500nits high brightness bar screen manufacturer, subway advertising high brightness screen solution,
hospital call screen wide temperature, LVDS industrial grade 19 inch high brightness LCD screen,
0-50 ℃ working temperature LCD bar screen, ultra-thin 21mm embedded high brightness screen,
1920 × 320 ultra wide resolution screen, daylight readable advertising screen, 178 ° IPS full view medical display,
CE/FCC certified industrial high brightness screen
