15.6-inch LCD display module EDP interface 1920*1080 sports equipment secondary screen TFT LCD screen

MOQ:	1
giá bán:	Có thể đàm phán
Thời gian giao hàng:	7-16 ngày
Phương thức thanh toán:	L/C, D/A, D/P, T/T.
khả năng cung cấp:	10000pcs

Thông tin chi tiết

Mô tả sản phẩm

Thông tin chi tiết

Nguồn gốc

Thâm Quyến

Hàng hiệu

TXWEI

Chứng nhận

CE FCC ROHS

Số mô hình

TXW156012B0

Tài liệu

Số pixel:

1920*1080

Xem hướng:

Giao diện hiển thị:

Độ sáng:

400 nit

Khu vực hoạt động:

344,16 *193,59

Kích thước phác thảo:

350,66*216,25*3 mm

Nhiệt độ hoạt động:

Nhiệt độ lưu trữ:

-20+60

Làm nổi bật:

15.6-inch TFT LCD display module

EDP interface LCD screen

1920x1080 sports equipment display

Mô tả sản phẩm

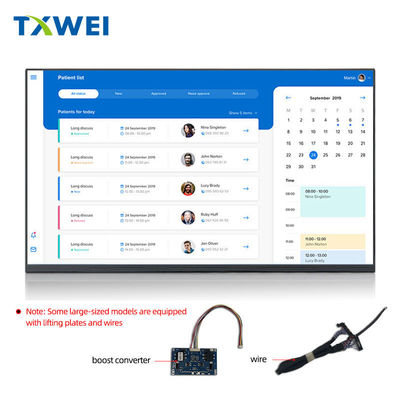

TXW156012B0 15.6" Industrial TFT LCD Module | FHD 1920×1080 eDP 400 nits - TXW®

SKU: TXW156012B0-EDP
In Stock: 1,620 pcs | Global DHL/FedEx Shipping 2-5 days | MOQ: 10 pcs
Payment: T/T, PayPal, Credit Card, Western Union | Warranty: 13 months

ITEM

Sandard value

Unit

LCD Type

Normally Black

--

Drive element

TFT active matrix

--

Number of pixels

1920*3RGB(H)X1080(V)

Dots

Pixel arrangement

RGB vertical stripe

--

Pixel Pitch (W*H)

0.17925 (H) × 0.17925 (V)

mm

Active area

344.16(H) x 193.59(V)

mm

Viewing direction

ALL O’CLOCK

-

TFT Driver IC

TBD

TFT interface

2lane EDP interface

-

Approx. Weight

TBD

g

LCM Size(W*H*T)

350.72(W)x204.98(H) x2.82(T)

mm

Touch structure

Touch Driver IC

-

Touch Interface

Module Function Description

Pin No.

Symbol

Function

Remark

1

NC

No Connection

2

H_GND

High Speed Ground

3

Lane1_N

Complement Signal Link Lane 1

4

Lane1_P

True Signal Link Lane 1

5

H_GND

High Speed Ground

6

Lane0_N

Complement Signal Link Lane 0

7

Lane0_P

True Signal Link Lane 0

8

H_GND

High Speed Ground

9

AUX_CH_P

True Signal Auxiliary Channel

10

AUX_CH_N

Complement Signal Auxiliary Channel

11

H_GND

High Speed Ground

12

VDD

LCD logic and driver power(3.3V)

13

VDD

LCD logic and driver power(3.3V)

14

NC

No Connection

15

LCD_GND

LCD logic and driver ground

16

LCD_GND

LCD logic and driver ground

17

HPD

HPD signal pin

18

BL_GND

Backlight ground

19

BL_GND

Backlight ground

20

BL_GND

Backlight ground

21

BL_GND

Backlight ground

22

BL_ENABLE

Backlight On/Off

23

BL_PWM

System PWM

24

NC

No Connection

25

NC

No Connection

26

VBL

LED Power Supply 5V-21V

27

VBL

LED Power Supply 5V-21V

28

VBL

LED Power Supply 5V-21V

29

VBL

LED Power Supply 5V-21V

30

NC

No Connection

1. Quick Specs (scan table in 10 s)

| Panel Size | 15.6 inch (16:9) |

| Resolution | 1920(RGB)×1080, FHD |

| Luminance | 400 cd/m² (typ.), 800 cd/m² (opt.) |

| Interface | 2-lane eDP 1.2, 2.7 Gb/s per lane |

| Voltage | Logic 3.3 V, Backlight 5-21 V |

| Temp. Range | Operating 0 ~ +50 °C, Storage -20 ~ +60 °C |

| Outline | 350.72×204.98×2.82 mm, 380 g |

| Touch | Optional PCAP / resistive |

2. Why TXW156012B0?✅ 0 °C cold-boot in 3.2 s - verified with ESPEC chamber video
✅ 96 h 50 °C full-load aging - luminance decay <2 % (report PDF)
✅ 83 % uniformity - 5-point measurement, corner-to-corner <15 %
✅ 2.82 mm slim stack - fits 10 mm total enclosure
✅ 72 % NTSC color gamut - sRGB-like for medical & broadcast
✅ 3 g vibration & 50 g shock passed - MIL-STD-810G certificate
✅ CE, FCC, RoHS, REACH ready - ship to EU/US duty-free
3. Detailed DescriptionOptical PerformanceThe IPS-type cell delivers 1140:1 contrast (typ.) and 85° all-viewing angle without color wash. White LED backlight uses 6 strings × 12 chips; forward voltage 30.8-36.3 V, 120 mA per string. Flicker-free PWM 200 Hz-20 kHz dimming via Pin-23; minimum 1 % duty still keeps linear gamma.
Signal Integrity2-lane eDP 1.2 @2.7 Gb/s each; PRBS7 eye-mask margin 0.22 UI at 50 °C. Supports 1080 p 60 Hz with 148.5 MHz PCLK; also 50 Hz/75 Hz for power-saving or gaming modes. AUX-CH 1 Mb/s for DDC/EDID and touch data pass-through.
Power SequenceBuilt-in power-state machine guarantees T7 ≤50 ms delay between backlight and video. No external sequencer needed; simplifies Intel/AMD reference design compliance.
Mechanical & EnvironmentalOutline 350.72×204.98×2.82 mm; active area 344.16×193.59 mm
Four M2 screw holes 353×189 mm for front-mount
0.3 mm chemically thinned glass + 0.12 mm front polarizer = 2.82 mm total
20 000 h LED life (L70, Ta=25 °C)
ESD ±15 kV air / ±8 kV contact IEC-61000-4-2 Level 4
Thermal shock -20 ↔ +60 °C 100 cycles; no glass delamination
4. Compatible PlatformsIntel NUC / Mini-PC - eDP direct, 5 V-21 V back-light
Raspberry Pi 4 + DPI-to-eDP bridge LT032 (include driver)
NVIDIA Jetson Nano/Xavier/Orin - DP→eDP, 1080 p 60 Hz
Rockchip RK3588 / RK356x - native eDP, 10-bit supported
STM32MP1 + SN65DSI86 - DSI-to-eDP, open-source DTS

FAQQ1: Can I drive the backlight at 24 V?
A: Absolute max 24 V; for lifetime >20 kh we recommend 12 V ±5 %.
Q2: Do you ship DDP to EU?
A: Yes, IOSS No. IM3721234567, VAT & duty prepaid up to 150 €.
Q3: Is touch USB-HID plug-and-play?
A: PCAP option uses FocalTech FT5426, HID driver, no extra software.
Keywords: 15.6 inch TFT module, 1920×1080 eDP LCD, 400 nits industrial display, TXW156012B0 supplier, IPS 15.6" FHD panel, OEM touchscreen kiosk monitor
