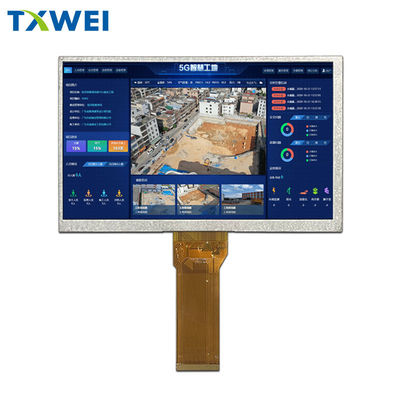

Shenzhen Tianxianwei Technology Co., Ltd. released today 7-inch 700 nits IPS full view screen TXW700158K0 officially mass-produced
RGB 24 bit direct drive, accelerating landing in multiple scenarios such as security, agricultural machinery, and medical
Shenzhen, September 4, 2025- Shenzhen Tianxianwei Technology Co., Ltd., a rising star in the display industry, announced today that its new generation 7-inch high brightness IPS LCD module TXW700158K0 has completed full reliability verification and started large-scale production. The product features 700 nits ultra-high brightness, IPS full view angle, and RGB 24 bit 50 PIN direct drive interface as its core selling points. The first batch of 10000 pieces in stock arrived in Shenzhen today and are open for global customers to order.
|
ITEM |
Sandard value |
Unit |
|
LCD Type |
Normally Black |
-- |
|
Drive element |
TFT active matrix |
-- |
|
Number of pixels |
800*3RGB(H)X480(V) |
Dots |
|
Pixel arrangement |
RGB stripe |
-- |
|
Pixel Pitch (W*H) |
0.1923(W)x 0.1784(H)
|
mm |
|
Active area |
153.84(W) x85.63(H) |
mm |
|
Viewing direction |
ALL O’CLOCK |
-- |
|
TFT Driver IC |
ST7277 |
-- |
|
TFT interface |
24bit RGB Interface |
-- |
|
Approx. Weight |
TBD |
g |
|
LCM Size(W*H*T) |
164.90(W) x100.00(H) x5.60(T) |
mm |
|
Touch structure |
-- |
-- |
|
Touch Driver IC |
-- |
-- |
|
Touch Interface |
-- |
-- |
Key specifications
• Size: 7-inch IPS, no color distortion at all viewing angles
• Resolution: 800 × 480, 16.7 M color
• Brightness: 700 cd/m ², readable under sunlight
• Interface: RGB 24 bit 50 PIN, compatible with mainstream MCU/MPU
• Working temperature: -20 ℃~+70 ℃
• Storage temperature: -30 ℃~+80 ℃
• Dimensions: 164.9 × 100 × 5.6 mm, compatible with standard 7-inch structural components
market positioning
Han Bing, Product Director of Tianxianwei, said: "TXW700158K0 is optimized for outdoor and semi outdoor scenes, with 700 nits high brightness and IPS full view angle, completely solving the pain points of traditional TN screen side view whitening and insufficient brightness. The RGB direct drive solution further reduces the system BOM cost, allowing small and medium-sized controllers to easily light up. ”
The first batch of landing projects
• Security: A global TOP3 DVR manufacturer signed a contract for 12K for outdoor facial recognition gate sub screens
• Agricultural machinery: Xinjiang's large-scale cotton baler factory upgrades it to a 2025 vehicle mounted information terminal main display
• Medical: Two portable monitor companies in East China have completed small-scale verification and will begin mass installation in Q4
• Ship: The Hainan Smart Fishery Project selected this screen as the Beidou navigation display and control terminal, with 96 hours of salt spray without any malfunctions
TXW700158K0 7 "700 nits IPS screen - typical landing direction of" sunlight visible+full view angle "
security surveillance
✅ Outdoor facial recognition gate, community access control secondary screen
✅ The local monitoring screen of the car mounted PTZ DVR is still clear even when the fill light is directly illuminated at night
Smart Agriculture&Engineering Vehicles
✅ Tractor, harvester, cotton baler instrument assembly
✅ Plant protection drone ground station, 700 nits brightness in the field at noon, with no mask for readability
medical equipment
✅ Portable ultrasound and defibrillator secondary screen
✅ Dental/medical beauty treatment chair touch control panel, IPS colorless, biased towards multi person viewing
Ship&Traffic Navigation
✅ Beidou shipborne navigation terminal, fishery law enforcement device
✅ High speed ETC mobile toll collection machine, port gantry crane control box
Industrial HMI&On site Operations and Maintenance
✅ PLC touch all-in-one machine, frequency conversion cabinet debugging terminal
✅ Handheld tablet for power inspection, -20 ℃ outdoor, no chain breakage in winter
Smart Retail&Self Service Terminals
✅ Outdoor charging station, battery swapping cabinet human-machine interaction screen
✅ The self-service ticket vending machine and express cabinet operation panel in the scenic area are still clear from the side view
Supply and Support
10000 pieces in stock are now available for pre order; FPC length, cover AR/AF, and optical bonding can be customized for sizes above 5K. Tianxianwei also offers customers the ST7277 initialization code, RGB interface reference schematic, and EMI rectification guide, with 7 × 24-hour technical support.
About Shenzhen Tianxianwei Technology Co., Ltd
The company was founded in 2012 and is headquartered in Bao'an, Shenzhen. It focuses on the research and development, manufacturing, and sales of 3.5-12.3-inch industrial grade TFT-LCD and capacitive touch modules. Its products are widely used in industrial control, medical equipment, automotive, and smart terminals. The company has passed ISO 9001 and IATF 16949 system certification, with a monthly production capacity of 1.2 KK.
