32 inch 500nits advertising machine display 1920*1080 LVDS interface commercial display medical industrial screen

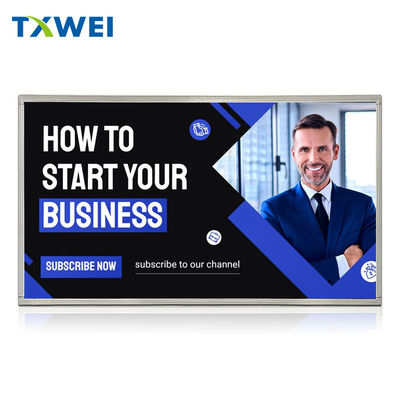

TXW32S006B0 32 inch high-performance display panel: a high-quality display solution suitable for multiple scenarios

A display panel with stable performance and strong adaptability is the core support for efficient operation of equipment in diversified scenarios such as advertising, commercial display, medical monitoring, and industrial control. The TXW32S006B0 32 inch display panel, with its carefully designed parameter configuration, has become a high-quality solution for display needs in various industries.

▪️  Model: TXW32S006B0
▪️  Size: 32 inch gold display size
▪️  Resolution: 19201080 high-definition pixels, delicate and particle free image
▪️  Display angle: IPS wide angle technology, multi angle viewing without color cast
▪️  Display interface: LVDS 51 PIN, signal transmission is extremely stable
▪️  Brightness: 500nits high brightness, visible even in strong light environments
▪️  Display area: 698.4392.85mm, with ample display space
▪️  Dimensions: 725.2422.721.3mm, compact design for easy installation
▪️  Working temperature: -20 ℃~70 ℃, stable in extreme environments like an old dog
▪️  Storage temperature: -30 ℃~80 ℃, zero pressure for transportation and storage

These scenes are super suitable for it

1. Advertising machine scene
   ▪️ Highlighting: 500 nits ensures that the storefront does not "die from the light" even at noon.
   ▪️ IPS full view: Pedestrians pass by from a 178 ° side without color distortion.
   ▪️ 7 × 24 hours continuous operation: After the mall closes, the night broadcast does not stop.
2.
   Medical equipment scenario
   ▪️ Accurate color: Grayscale and color accuracy have been calibrated at medical grade, and details in B-ultrasound and CT images are not lost.
   ▪️ Wide temperature environment: The operating room has a low temperature of 18 ℃, the equipment cooling area has a temperature of 60 ℃, and the screen is not black or shaking.
   ▪️ Anti electromagnetic interference: located in the same room as high-frequency surgical equipment, with no stripes on the screen.
3.
   Industrial display scene
   ▪️ The all metal casing can be customized to prevent dust, oil stains, and iron filings.
   ▪️ LVDS interface long-distance transmission: signals within 15 meters do not attenuate, making it easy to separate the console from the machine for deployment.
   ▪️ Low temperature start-up at -20 ℃: The cold storage sorting line starts at 5am and lights up in seconds.

Common questions Q&A

Q: Can this screen directly replace the 32 "consumer TV I am currently using?
A: Not recommended. TVs generally only work at 0-50 ℃ and have a brightness of around 250 nits; The -20~70 ℃ wide temperature range, 500 nits high brightness, and LVDS interface of TXW32S006B0 are all industrial grade designs, making long-term 24 × 7 operation more reliable.
Q: Is a brightness of 500 nits sufficient for semi outdoor use?
A: Clear and readable within a visible distance of 1.5 meters under direct sunlight of 70000 lux at noon; For complete outdoor use, a 1000 nits high brightness backlight kit (model suffix with - HB) is optional.
Q: How to calculate power consumption and heat dissipation?
A: Standard backlight 30 W; optional low-power mode 22 W (brightness reduced to 350 nits). The 21.3mm aluminum frame comes with heat dissipation fins, and the shell can withstand a temperature of ≤ 55 ℃ continuously for 12 hours at an ambient temperature of 40 ℃, without the need for an additional fan.
Q: Do you have a touch version?
A: Yes, there is. Optional 10 point capacitive touch (G+G tempered glass/anti glare surface treatment), touch height of 6mm, operable with water and gloves, and equipped with 8 kV ESD protection.
Q: What is the minimum order quantity (MOQ)?
A: Minimum order of 1 standard product; Customized front light/brightness/touch/shell ≥ 100 pieces; Batch price ladder: three levels: 100/500/1000 pieces.
Q: How long can we expect to receive the samples?
A: Regular inventory takes 1-3 days to ship; Customized touch or highlight version 2-3 weeks; SF Express cash on delivery, can reach major cities in China within 48 hours.
Q: Can you provide a 3D structural diagram and driver code?
A: Support providing product specifications, 3D structural diagrams, and later providing driver code
